EcoPulse demonstrator completes wind tunnel testing

Home Articles EcoPulse demonstrator completes wind tunnel testing

Airbus completes EcoPulse demonstrator wind tunnel testing

The EcoPulse distributed propulsion hybrid aircraft demonstrator – which is being developed by Daher, Safran and Airbus with the support of France’s Civil Aviation Research Council (CORAC) and French Civil Aviation Authority (DGAC) – has successfully completed wind tunnel testing at the Airbus UK Filton facility.

‘The EcoPulse demonstrator is an integral part of our decarbonisation roadmap, increasing our knowledge of distributed propulsion systems, paving the way for electric and hybrid-electric, emission-free aircraft. These wind tunnel tests will enable us to align our simulation models with actual performance in order to validate future configuration choices and technologies. This is yet another milestone successfully achieved with our partners Daher and Safran, once again highlighting that the path to zero emissions will benefit from collaborative expertise.’

Jean-Brice Dumont, Executive Vice President Engineering, Airbus

Wind tunnel tests, key to validating flight test performance

During the development phase of new aircraft configurations, engineering teams need to verify that in-flight structure and systems behaviour and performance matches that of computer simulations. By placing individual components, small-scale models or whole full-sized parts in a wind tunnel, previously calculated assumptions can be validated.

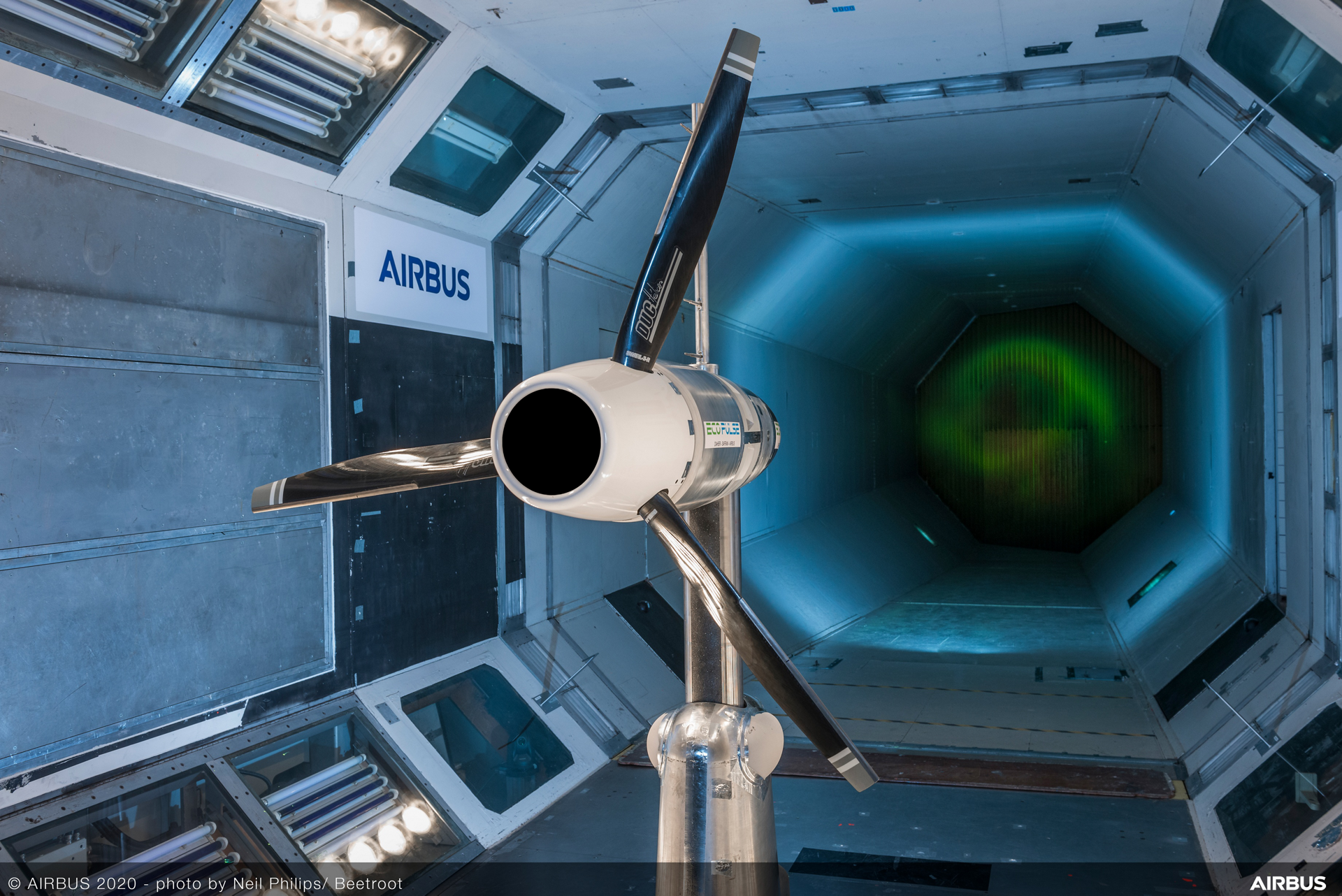

“The EcoPulse wind tunnel tests allowed us to evaluate the performance characteristics of the propeller and the cooling process of the electric engine. To achieve this, we assembled the engine -provided by Safran-, the Airbus nacelle and the propeller -provided by DUC Hélices- that will be installed on the actual demonstrator aircraft, in the wind tunnel. We then used large powerful fans to blow air (at differing speeds) over and around the model. By doing this we were able to take actual measurements and capture real-time data” explains Tim Axford, Head of Airbus Wind Tunnel facility, Airbus UK.

Testing the propeller performance: “We looked at the different  levels of power and Revolutions Per Minute (RPM) for the engine, measuring the thrust and the force on the propellers. We also looked at the propeller ‘wake’ or airflow behind the engine. This gave us a set of experimental data to better understand the interaction between the propeller and the wing” says Tim.

Electrical engine cooling concept: “Electrical engines generate heat while running requiring a cooling system to lower temperatures, both on the ground and in flight. In the wind tunnel, dedicated engine and air temperature measurements were recorded to assess the effectiveness of the cooling technologies.”



Discover EcoPulseTM, the distributed hybrid-propulsion aircraft demonstrator that Airbus is developing in partnership with Daher and Safran and with the support of CORAC and DGAC.

Next steps

The observations and data collected during the wind tunnel tests will allow Airbus and its partners to better estimate the power consumption of the propulsion system, and consequently the final energy performance of the aircraft demonstrator. “The precise figures of the propeller performance will be taken into account for the creation of the Airbus Flight Control Computer software, one of the next steps” says Matthieu Scherrer, Airbus EcoPulse project leader.

In the coming months, Airbus, Daher and Safran will work towards the achievement of the Critical Design Review (CDR), which will give way to the start of the production of the EcoPulse demonstrator, ahead of ground testing early 2022.

Launched in June, 2019, the EcoPulse demonstrator is scheduled to make its first flight test flight by summer 2022.

About Distributed Propulsion Systems

Distributed Propulsion Systems consist of breaking down thrust generation into many small engines spread out along the span of the wing. Tailoring the power distribution configuration in this way  could benefit cruise, as well as take-off and landing performance but also noise emissions. And last but not least, the use of distributed engine thrust could enable aircraft flight control concepts to be redefined.

Link to Airbus article
